3-18m fiberglass telescopic mast

FOB Reference Price:Get Latest Price
$30.00 - $200.00 / Sets | 50 Set/Sets 3-18m fiberglass telescopic mast (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China (Mainland)
Brand Name:
Talents 3-18m fiberglass telescopic mast
Model Number:
01-tal-3-18m fiberglass telescopic mast
prosperty:
strength and light
fully extracted length:
3m,5m,6m,7m,10m,12m,15m,18m
transportation length:
1m,1.13m,1.18m,1.25m
top diameter:
4mm and 8mm
wall thickness:
0.9mm-2mm
pole material:
UV protected specially reinforced multilayer winding
number of segments:
3 , 5 , 6,7,10 , 12
bottom diameter:
55mm-74mm
Usage:
Wireless Networking equipment
weight:
1kg-9kg
Supply Ability
Supply Ability:
1000 Set/Sets per Month 3-18m fiberglass telescopic mast
Packaging & Delivery
Packaging Details
inner packing : plastic bag for each , the outer packing : Carton .
Port
Tianjin xingang,China
Lead Time :
20 days after received the down payment

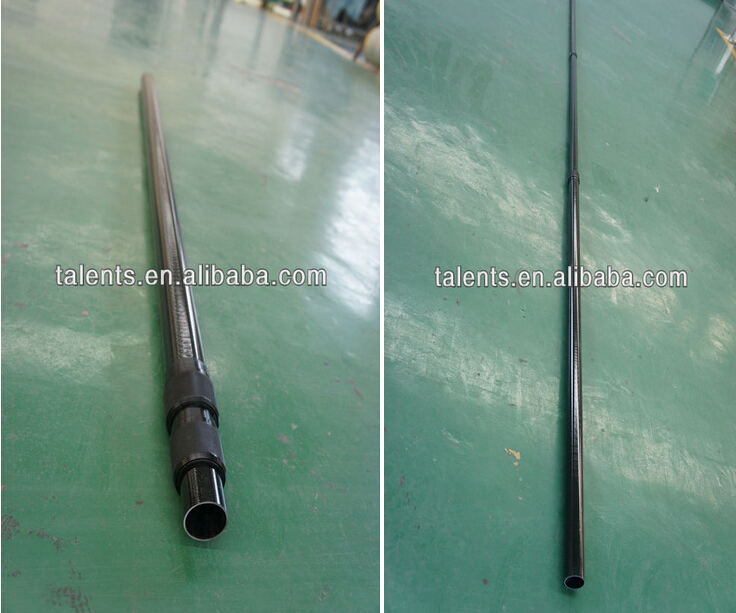

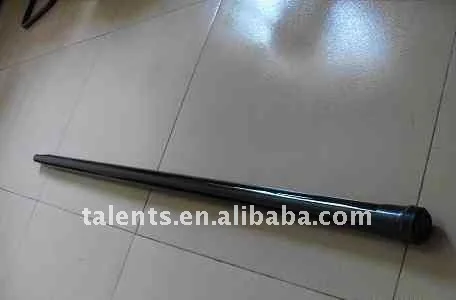

 Brife Intruduction for the fiberglass telescopic tubes

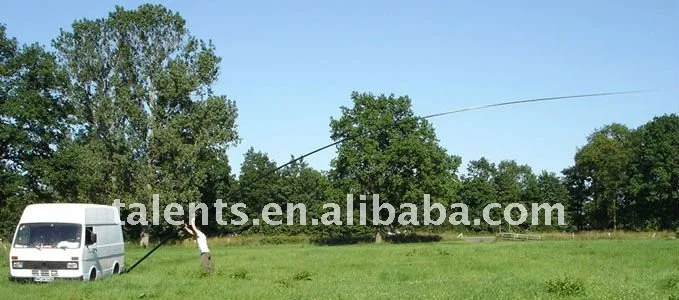

A single person can easily put them up within a few minutes. Especially developed to make our portable

equipment even more rugged and durable!
These are extremely strong poles, with a much greater wall thickness (up to 2mm!) than the usual

"fishing rod" types. A special reinforcing winding technique - several layers of fiberglass are wound in

alternating direction (criss/cross winding) - provides greatly increased lateral and linear strength.

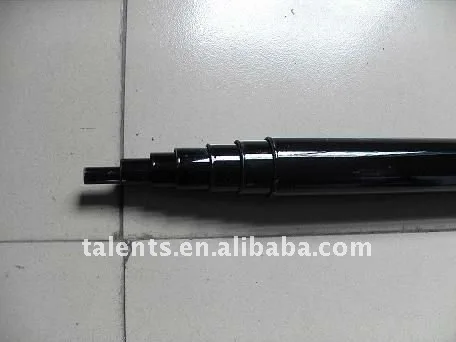

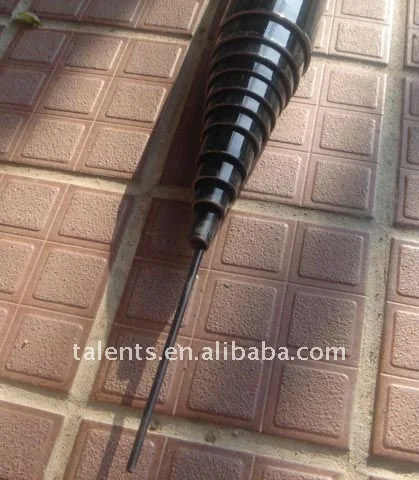

Stronger joints are achieved by a much larger overlap between the individual tube segments than usual.

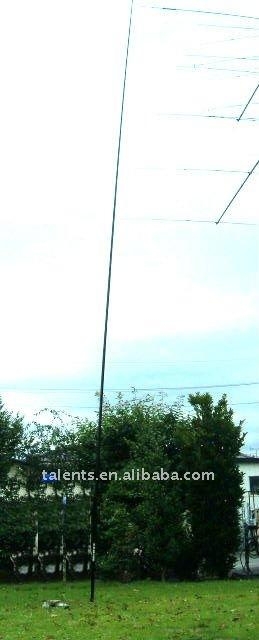

They can also easily support temporary lightweight 1 Element Quad or Delta loops for 20-10m, and dipoles

 for all bands, especially when used with open wire feedline. (Most baluns would be somewhat heavy).

 4-6 poles could be used to build lightweight beams for 40 or 80m.

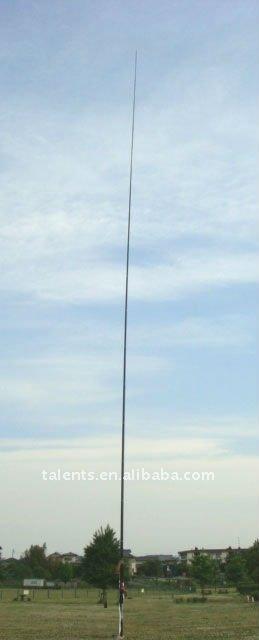

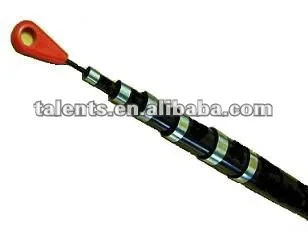

Even the top segment is 8mm in diameter (and 1.4mm wall thickness), so the poles can be used to their

full 12m length - unlike other poles where the top segment is very thin as a whip. The best (and cheapest)

wire to use for building such wire antennas (verticals, loops, dipoles etc.) is AWG 18 (= 1mm diameter)

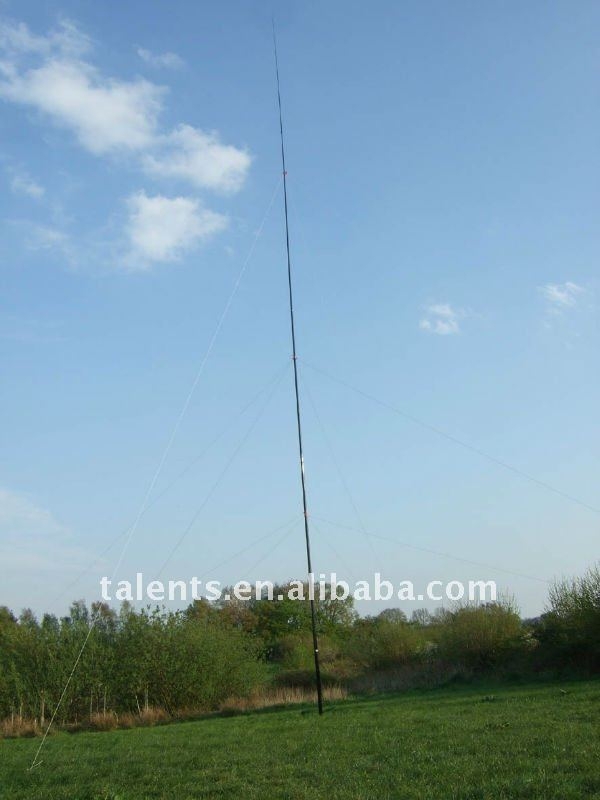

enameled copper wire or similar. Thin fishing monofilament (1mm diameter) or similar rope is very suitable

 for guy lines.

Specification List for the Fiberglass Telescopic Tubes



High strength professional telescopic fiberglass pole

fully extracted length (height)

3.66m (12ft)

transportation length

1.14m

weight

0.5kg

bottom diameter

29mm

top diameter

6.5mm

wall thickness

0.8mm – 1mm

number of segments

4

pole material

black fiberglass, UV protected
specially reinforced multilayer winding



High strength professional telescopic fiberglass pole

fully extracted length (height)

5.5m (18ft)

transportation length

0.78m

weight

1.1kg

bottom diameter

39mm

top diameter

8mm

wall thickness

0.8mm – 1.5mm

number of segments

                       9

pole material

black fiberglass, UV protected
specially reinforced multilayer winding



High strength professional telescopic fiberglass pole

fully extracted length (height)

10m (33ft)

transportation length

1.18m (3ft 10")

weight

2.5kg (6lbs)

bottom diameter

55mm (2 1/6")

top diameter

4mm (1/6")

wall thickness

1.4mm - 2mm
(1/18" - 1/12")

number of segments

10

pole material

black fiberglass, UV protected
specially reinforced multilayer winding



High strength professional telescopic fiberglass pole

fully extracted length (height)

12m (40ft)

transportation length

1.18m (3ft 10")

weight

3.3kg (7lbs)

bottom diameter

55mm (2 1/6")

top diameter

4mm (1/6")

wall thickness

1.4mm - 2mm
(1/18" - 1/12")

number of segments

12

pole material

black fiberglass, UV protected
specially reinforced multilayer winding



high strength professional telescopic fiberglass pole

fully extracted length (height)

18m (60ft)

transportation length

1.70m (5ft 7")

weight

6.8kg (15lbs)

bottom diameter

73mm (2 5/6")

top diameter

8mm (1/3")

wall thickness

1mm - 2mm
(1/25" - 1/12")

number of segments

12

pole material

black fiberglass, UV protected
specially reinforced multilayer winding
